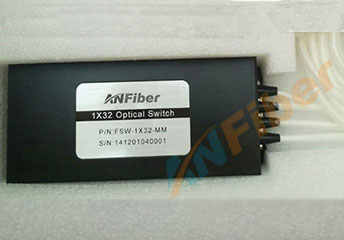

1X32 Optical Switch Modules

Name: 1X32 Optical Switch Modules

Class: Optical Switch

Type: 1X32 Fiber Optic Switch

: Test Report

Previous: 1X16 Optical Switch (A Type)

Next: 1XN Optical Switch Modules

1X32 Optical Switch(Single mode and Multimode)

1X32 Optical Switches Modules is a kind of functional component, with the ability of switching optical route.The 1X32 Opto-Mechanical Optical Switches consists of 1 input and 32 output fiber ports that selectively transmits,redirects,or blocks optical power in a fiber optic transmission line.These all-optical switches are bi-directional and can be used in either the 1X32 or 32X1 direction.Fiber optical switches is designed for use in optical fiber communication networks and measurement instruments.

Features of Optical Switches:

Low Loss and High Reliability

Parallel Interface (TTL)

Epoxy-free on Optical Path

Modularized Design

Single mode and Multi-mode

Applications of Optical Switches:

Ring Network

Remote Monitoring in Optical Network

Testing of Fiber,Optical Component

Secure Communications

R&D in Laboratory

Specifications of Optical Switches:

Parameters	Unit	ANFIBER-FSW-1X32
Fiber Type		Multimode	Single mode
Wavelength Range	nm	850±40/1300±40	1260~1650
Test Wavelength	nm	850/1300	1310/1550
Insertion Loss ^{1, 2}	dB	Typ: 0.8 Max:1.0
Return Loss ^{1, 2}	dB	MM≥30 SM≥50
Crosstalk ¹	dB	MM≥55 SM≥70
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Durability	Cycles	≥10 Million
Switch Time	ms	≤10 (Sequence switch time of adjacent channel)
Optical Power	mW	≤500
Operating Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Relative Humidity	%	5 ~ 95
Dimension	mm	150X80X70 (17≤N≤64)
Note: ¹Within operating temperature and SOP. ²Customization is available.

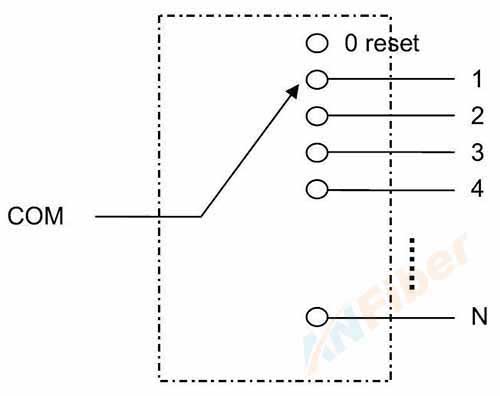

Optical Path of Optical Switches:

Single mode Multimode 850/1310/1550nm Fiber Optical Switches

Ordering Information of Optical Switches:

A	B	C	D	E	F
Channel	Test Wavelength	Fiber Type	Tube Type	Fiber Length	Connector
1X4 1X8 1X10 1X12 1X16 1X24 1X32 X: Others	85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Others	SM:SM,9/125 M5:MM,50/125 M6:MM,62.5/125 X: Others X:Others	25:250um 90:900um X: Others	05: 0.5m 10: 1.0m 15: 1.5m X: Others	00: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other

1X32 Optical Switches Modules Single mode Multimode 850/1310/1550nm
