C Band WDM (Red/Blue 1X2 1530/1560nm 3W)

Name: C Band WDM (Red/Blue 1X2 1530/1560nm 3W)
Class: High Power
Type: C band Filter WDM
Specifications of C Band WDM:
Parameters Unit Values
Pass Band Wavelength Range nm 1530-1542 (1548-1560)
Max. Insertion Loss dB 1.0
Typ. Insertion Loss dB 0.8
Min. Isolation at 23℃ dB 22
Typ. Isolation dB 25
Reflection Band Wavelength Range nm 1548 - 1560 (1530-1542)
Max. Insertion Loss dB 0.7
Typ. Insertion Loss dB 0.5
Min. Isolation at 23℃ dB 12
Typ. Isolation dB 15
Optical Return Loss dB 50
Typ. PDL dB 0.05
Max. PDL dB 0.1
Thermal Stability dB/℃ ≤0.005
Max. Optical Power (CW) W 1, 2, 3 or Specify
Max. Peak Power for ns Pulse kW 10
Max. Tensile Load N 5
Fiber Type      SMF-28e Fiber
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85

Ordering Information of C Band WDM:
A B C D E
Wavelength Handling Power Connector Type on Port 1, 2 & 3 Fiber Type on Port 1, 2 & 3 Fiber Length
4248 = 1530-1542nm Pass / 1548-1560nm Reflect
4842 = 1548-1560nm Pass / 1530-1542nm Reflect
X = other
01 = 1W
X = other
1 = FC/UPC
2 = FC/APC
3 = SC/UPC
4 = SC/APC
N=None
X = other
B = 250um Panda Fiber
L = 900um Loose Tube
X = other
1 = 1.0m
X = other

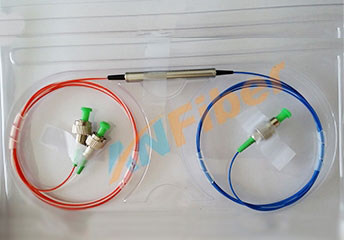

C Band Red/Blue WDM
