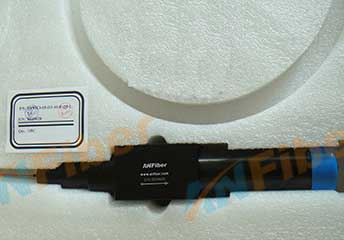

Collimated Beam Output SM Isolator 1064nm 50W D72

Collimated Beam Output SM Isolator 1064nm 50W D72

Name: Collimated Beam Output SM Isolator 1064nm 50W D72

Class: High Power

Type: Collimated Beam Output Isolator

: Test Report

Previous: Collimated Beam Output SM Isolator 1064nm 50W D62

Next: Fiber Collimator 1064nm 10W

Specifications:

Parameters	Unit	Values
Center Wavelength (λc)	nm	1064 or Specify
Operating Wavelength Range	nm	±5
Typ. Peak Isolation	dB	30~35
Min. Isolation at 23℃	dB	28
Typ. Transmission	-	93%
Min. Transmission	-	90%
Ellipticity	%	>90
Min. Return Loss	dB	50
Max. Polarizaiton Dependent Loss	dB	0.1
Nominal Output Beam Diameter (1/e^2)@0~1m WD	mm	5+/-0.5, 6+/-0.5, 7+/-0.5 or Specify
Max. Average Power	W	5, 10, 20 or Specify
Max. Peak Power	KW	10, 20 or Specify
Fiber Type	-	SCF 20/130 Fiber or LMA Fiber
Max. Tensile Load	nm	5
Operating Temperature	℃	-5 to +50
Storage Temperature	℃	-20 to +75

Ordering Information:

A	B	C	D	E	F
Wavelength	Package Type	Handling Power	Output Beam Diameter	Fiber Jacket	Fiber Length
06 = 1064nm X = other	D72 = Type D72	05 = 5W 10 = 10W 20 = 20W X = other	50 = 5mm 60 = 6mm 70 = 7mm X = other	B = 6mm Armoured Cable X = other	1.0 = 1.0m X = other

Collimated Beam Output SM Isolator 1064nm
