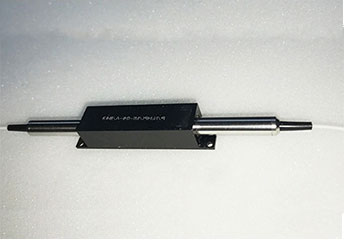

PM Band Pass Filter/Isolator Hybrid Combination 1066nm 2W

PM Band Pass Filter/Isolator Hybrid Combination 1066nm 2W

Name: PM Band Pass Filter/Isolator Hybrid Combination 1066nm 2W

Class: Hybrid Device

Type: PM Bandpass Filter/Isolator Hybrid

: Test Report

Previous: Bandpass Filter/Isolator Hybrid Combination 1064nm 1W

Next: PM Tap Isolator 1064nm 1W 3W

Specifications:

Parameters	Unit	Values
Nominal Center Wavelength	nm	1066 or Specify
Min. Pass Bandwidth @0.5dB	nm	±6
Max. Stop Bandwidth @25dB	nm	30
Typ. Peak Isolation ( Backward )	dB	30
Min. Isolation at 23℃ ( Backward )	dB	27
Typ. Insertion Loss at λc±6nm , 23℃	dB	1.7
Max. Insertion Loss at λc±6nm , 23℃	dB	2.0
Max. Insertion Loss at 1066nm @ 1.0W , 23℃	dB	2.2
Max. Insertion Loss at 1066nm @ 1.5W , 23℃	dB	2.4
Max. Insertion Loss at 1066nm @ 2.0W , 23℃	dB	2.9
Min. Return Loss (Input/Output)	dB	50/50
Min. ER at 23℃ (F-Type)	dB	21
Max. Optical Power (CW)	W	2 or Specify
Max. Peak Power for pulse	KW	10@1 ns
Max. Tensile Load	N	5
Fiber Type		Nufern PM980-XP fiber
Operating Temperature	℃	-5 ~ +50
Storage Temperature	℃	-20 ~ +75

Ordering Information:

A	B			C	D	E	F	G
Wavelength	Package Type	Pass Band Width	Stop Band Width	Handling Power	Axis Alignment	Connector Type on Port 1 & 2	Fiber Jacket on Port 1 & 2	Fiber Length
06 = 1066nm X = other	B43 - Type B43	12 = 12nm X = other	30 = 30nm X = other	02 = 2W X = other	F = Fast Axis Blocked	1 = FC/UPC 2 = FC/APC N=None	B = 250um Bare Fiber X=other	1=1.0m X:other

PM Band Pass Filter/Isolator Hybrid Combination 1066nm 2W
