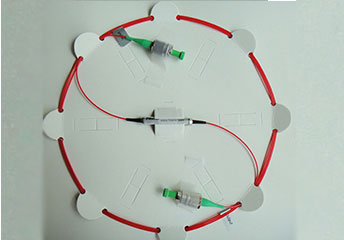

PM Isolator (1310/1480/1550/1590nm 10W)

PM Isolator (1310/1480/1550/1590nm 10W)

Name: PM Isolator (1310/1480/1550/1590nm 10W)

Class: Polarization Maintaining

Type: PM Fiber Isolator

: Test Report

Previous: PM Beam Combiner/Spliter (1x2 1310/1480/1550nm 5W)

Next: PM Filter Coupler Module (1x4 1x8 1310/1550nm 20W)

Specifications of PM Isolator:

Parameters	Unit	Values
Stage		Single Stage	Dual Stage
Center Wavelength (λc)	nm	1310, 1480, 1550 or 1590
Operating Wavelength Range	nm	±20
Typ. Peak Isolation	dB	42	58
Min. Isolation at 23℃	dB	28	48
Typ. Insertion Loss at 23℃	dB	0.4	0.5
Max. Insertion Loss at 23℃,λc	dB	0.6	0.7
Min. Return Loss (Input/Output)	dB	55	55
Min. Extinction Ratio(only for F type)	dB	25	25
Min. Extinction Ratio(only for B type)	dB	22	22
Max. Optical Power (CW)	W	1, 3, 5,10 or Specify
Max. Peak Power for ns Pulse	kW	10
Max. Tensile Load	N	5
Fiber Type		PM Panda Fiber
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85

Ordering Information of PM Isolator:

A	B	C	D	E	F	G
Wavelength	Stage	Power Level	Axis Alignment	Connector Type on Port 1, 2	Fiber Jacket on Port 1, 2	Fiber Length
31 = 1310nm 48 = 1480nm 55 = 1550nm X = other	S = Single Stage D = Dual Stage	1 = 1W 3 = 3W 5 = 5W 10 = 10W X = other	F = Fast Axis Blocked B = Both Axis Working	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X=other	B = 250um Panda Fiber L = 900um Loose Tube X=other	0.8 = 0.8m X=other

Polarization Maintaining Fiber Optical Isolator(1310/1480/1550/1590nm PM Isolator)
