PM Fused WDM (980/1550nm 500mW)}

PM Fused WDM (980/1550nm 500mW)}

Name: PM Fused WDM (980/1550nm 500mW)}

Class: Polarization Maintaining

Type: PM Fused WDM

: Test Report

Previous: PM Fused Coupler (1X2 2X2 1350nm 500mW)

Next: PM Fiber Coupler (Fused,1x2 2x2 980/1030/1064/1310/1550/1940/2000nm 500mW)

Specifications of PM Fused WDM:

Parameters	Unit	Values
Center Wavelength	nm	980 & 1550
Max.Insertion Loss	dB	0.7
Min.Isolation	dB	≥15dB@980nm, ≥13 dB@1550 nm
Min. Extinction Ratio	dB	18
Min. Directivity	dB	55
Max.Optical Power	mW	500
Max. Tensile Load	N	5
Operating Temperature	℃	-0 to +70
Storage Temperature	℃	-40 to +85
Fiber Type	-	Fujikura PM-1550 Panda Fiber
Package Dimensions	mm	250um Bare Fiber Ø3.0X54
Package Dimensions	mm	900um Loose Tube Ø3.0X60

Ordering Information of PM Fused WDM:

A	B	C	D	E
Wavelength	Port Configuration	Connector Type on all Ports	Fiber Jacket on all Ports	Fiber Length
9855 = 980 & 1550nm	1 =1X2	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X = other	B = 250um Bare Fiber L = 900um Loose Tube X= other	1 = 1.0m X = other

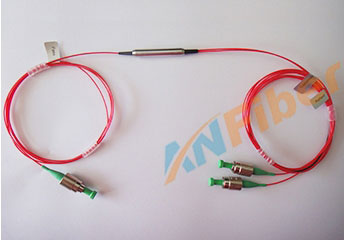

980/1550nm PM Fused WDM with Polarization Maintaining Fiber
