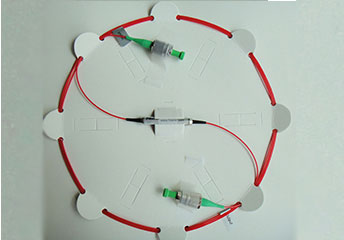

PM Optical Isolator 1064nm 300mW

PM Optical Isolator 1064nm 300mW

Name: PM Optical Isolator 1064nm 300mW

Class: Polarization Maintaining

Type: Polarization Maintaining Fiber Isolator

: Test Report

Previous: PM Optical Isolator 1064nm 1W 2W

Next: PM Fiber Mirror 1310/1480/1550nm 500mW

Specifications of PM Isolator:

Parameters	Unit	Values
Stage		Single Stage		Dual Stage
Grade		Grade P	Grade A	Grade P	Grade A
Center Wavelength (λc)	nm	1064
Typ. Peak Isolation	dB	40	38	55	52
Min. Isolation at 23℃	dB	35	32	45	42
Typ. Insertion Loss at 23℃	dB	1.5	1.6	2.4	2.6
Max. Insertion Loss at -5℃-50℃	dB	1.8	2.0	3.2	3.4
Min. Return Loss (Input/Output)	dB	55/50	55/50	55/50	55/50
Min. Extinction Ratio (only for B Type)	dB	20	18	20	18
Min. Extinction Ratio (only for F Type)	dB	23	23	23	23
Max. Optical Power (CW)	mW	300
Max. Tensile Load	N	5
Fiber Type		PM 980 Panda Fiber
Operating Temperature	℃	-5 ~ +50
Storage Temperature	℃	-40 ~ +85

Ordering Information of PM Isolator:

A	B	C	D	E	F	G
Wavelength	Grade	Stage	Axis Alignment	Connector Type	Fiber Jacket on Port 1 & 2	Fiber Length
06 = 1064nm	P = Premium Grade A = A Grade	S = Single Stage D = Dual Stage	F - Fast Axis Blocked B - Both Axis Working	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X=other	B = 250um Panda Fiber L = 900um Loose Tube Panda Fiber X=other	0.8 = 0.8m X:other

Polarization Maintaining Fiber Optical Isolator(1064nm PM Isolator)
