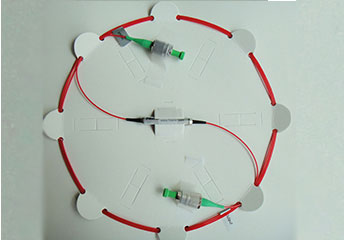

PM Band Pass Filter 1064nm 3W

PM Band Pass Filter 1064nm 3W

Name: PM Band Pass Filter 1064nm 3W

Class: Polarization Maintaining

Type: Polarization Maintaining Band Pass Filter

: Test Report

Previous: PM Fiber Mirror 1310/1480/1550nm 500mW

Next: Mini PM Filter Coupler 1X2 2X2 1310/1550nm 500mW

Specifications:

Parameters	Unit	Values
Nominal Center Wavelength	nm	1064
Max. Insertion Loss	dB	0.8
Max. Pass Bandwidth @3dB	nm	3
Max. Stop Bandwidth @25dB	nm	10
Min. ER	dB	20
Min. Optical Return Loss	dB	50
Max. Optical Power(CW)	W	3
Max. Tensile Load	N	5
Fiber Type		PM 980 Panda Fiber
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85

Ordering Information:

A	B	C	E	F	G
Center Wavelength	Pass Band Width	Stop Band Width	Connector Type for Port 1 & 2	Fiber Jacket for Port 1 & 2	Fiber Length
1064 = 1064nm X = other	02 = 2.0nm X = other	10 = 10nm X = other	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X=other	B = 250um Bare Fiber L = 900um Loose Tube X=other	1=1.0m X:other

PM Band Pass Filter 1064nm with Polarization Maintaining Fiber
