Free Space Isolator 2000nm 500mW

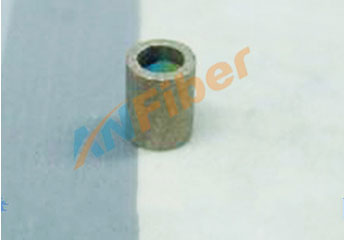

Name: Free Space Isolator 2000nm 500mW
Class: 2000nm Fiber Components
Type: Free Space Optical Isolator

Specifications:
Parameter Unit Values
Stage   Single Stage Dual Stage
Center Wavelength  nm 2000
Operating Wavelength Range nm ±50
Typ. Peak Isolation dB 38 50
Min. Isolation at 23℃ dB 18 32
Typ. Insertion Loss at 23℃ dB 0.2 0.3
Max. Insertion  Loss at 23℃ dB 0.4 0.5
Clear Aperture mm 0.9
Polarization Plane of Input   Illustrated in Below Drawing
Tilt Angle of Input Light deg 0
Max. Optical Power (CW) mW 500 (Polarized Light & Proper Alignment Is Necessary)
Operating Temperature ℃ -5 ~ +70
Storage Temperature ℃ -40 ~ +85

Ordering Information:
A B C
Wavelength Stage Optical Path Orientation
20 = 2000nm
X=other
S - Single Stage
 D - Dual Stage
 F - Forward (as indicated above)
B - Backward
