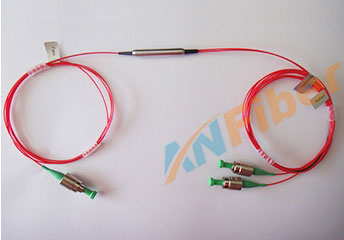

PM DWDM (100GHz 200GHz 3W)

PM DWDM (100GHz 200GHz 3W)

Name: PM DWDM (100GHz 200GHz 3W)

Class: Polarization Maintaining

Type: Polarization Maintaining DWDM

: Test Report

Previous: PM Fliter Coupler (1x2 2x2 1310/1550nm 3W)

Next: PM Beam Combiner/Spliter (1x2 1310/1480/1550nm 5W)

Specifications of PM DWDM:

Parameters		Unit	Values
Filter Type			100GHz	200GHz
Pass Band	Center Wavelength	nm	ITU Grid
	Typ. Bandwidth at 0.5dB	nm	0.4	0.7
	Min. Bandwidth at 0.5dB	nm	0.2	0.5
	Typ. Channel Isolation at C→P	dB	30
	Min. Channel Isolation at C→P	dB	25
	Typ. Insertion Loss at C→P	dB	1.2	1.0
	Max. Insertion Loss at C→P	dB	1.4	1.2
Reflection Band	Typ. Channel Isolation at C→R	dB	15
	Min. Channel Isolation at C→R	dB	12
	Typ. Insertion Loss at C→R	dB	0.5
	Max. Insertion Loss at C→R	dB	0.7
Typ. Extinction Ratio at 23°C		dB	22
Min. Extinction Ratio at 23°C		dB	20
Min Return Loss		dB	50
Min. Directivity		dB	45
Center Wavelength Stability		nm/℃	≤0.002
Thermal Stability		dB/℃	≤0.005
Max. Optical Power (CW)		W	1, 2, 3 or Specify
Max. Peak Power for ns Pulse		kW	10
Max. Tensile Load		N	5
Fiber Type		-	PM Panda Fiber
Operating Temperature		℃	-5 to +70
Storage Temperature		℃	-40 to +85

Ordering Information of PM DWDM:

A	B	C	D	E	F
Channel Spacing	ITU Grid	Handling Power	Connector Type on Port 1, 2 & 3	Fiber Jacket on Port 1, 2 & 3	Fiber Length
1 = 100 GHz 2 = 200 GHz		01 = 1W X = other	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N = None X = other	B = 250um Panda Fiber L = 900um Loose Tube X = other	0.8 = 0.8m X = other

PM DWDM 100GHz 200GHz with Polarization Maintaining Fiber
