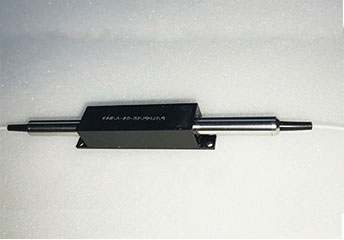

PM Isolator (1064nm 2W)

PM Isolator (1064nm 2W)

Name: PM Isolator (1064nm 2W)

Class: Polarization Maintaining

Type: PM Isolator

: Test Report

Previous: PM Filter Coupler Module (1x4 1x8 1310/1550nm 20W)

Next: PM/PI Broadband Isolator (1064nm 5W)

Specifications of PM Isolator:

Parameters	Unit	Values
Isolator Type		A43	B43
Center Wavelength	nm	1064
Operating Wavelength Range	nm	±5
Typ. Peak Isolation	dB	35
Min. Isolation at 23℃	dB	28
Typ. Insertion Loss at 23℃	dB	1.6	1.7
Max. Insertion Loss at 23℃	dB	1.8	1.9
Max. Insertion Loss at 1064nm @ 1.0W , 23℃	dB	2.0	2.1
Max. Insertion Loss at 1064nm @ 1.5W , 23℃	dB	2.5	2.3
Max. Insertion Loss at 1064nm @ 2.0W , 23℃	dB	--	2.5
Min. Return Loss (Input/Output)	dB	50/50
Min. ER at 23℃ (F-Type)	dB	22
Min. ER at 23℃ (B-Type)	dB	20
Max. Optical Power (CW)	W	1.0 or specify	2.0 or specify
Max. Peak Power for pulse	kW	10 @ 1ns
Max. Tensile Load	N	5
Fiber Type		PM 980 Panda Fiber
Operating Temperature	℃	-5 to +50
Storage Temperature	℃	-20 to +75

Ordering Information of PM Isolator:

A	B	C	D	E	F	G
Wavelength	Package Type	Handling Power	Axis Alignment	Connector Type on Port 1, 2	Fiber Jacket on Port 1, 2	Fiber Length
06 = 1064nm	A43 = Type A43 B43 = Type B43	01 = 1W 02 = 2W R = Refer to specification	F = Fast Axis BlockedB = Both Axis Working	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X = other	B = 250um Bare Fiber L = 900um Loose Tube X=other	1 = 1.0m X=other

Polarization Maintaining Fiber Optical Isolator(1064nm PM Isolator 2W)
