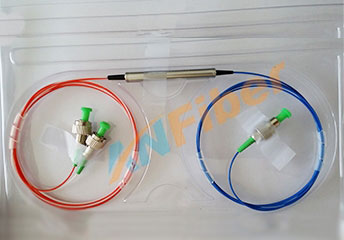

Single Mode WDM (1x2 1530-1542/1548-1560nm 500mW)

Name: Single Mode WDM (1x2 1530-1542/1548-1560nm 500mW)
Class: WDM & CWDM & DWDM & AWG
Type: Wavelength Division Multiplexer

Specifications:
Parameters Unit Values
Pass Band Wavelength Range nm 1530-1542 (1548-1560)
Max. Insertion Loss dB 0.8
Typ. Insertion Loss dB 0.6
Min. Isolation at 23℃ dB 22
Typ. Isolation dB 25
Reflection Band Wavelength Range nm 1548 - 1560 (1530-1542)
Max. Insertion Loss dB 0.5
Typ. Insertion Loss dB 0.3
Min. Isolation at 23℃ dB 12
Typ. Isolation dB 15
Optical Return Loss dB 50
Typ. PDL dB 0.05
Max. PDL dB 0.1
Thermal Stability dB/℃ ≤0.005
Max. Optical Power (CW) mW 500
Max. Tensile Load N 5
Fiber Type   SMF-28e Fiber
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85

Ordering Information:
A B C D
Wavelength Connector Type on Port 1, 2 & 3 Fiber Jacket on Port 1, 2 & 3 Fiber Length
4248 = 1530-1542nm Pass / 1548-1560nm Reflect
4842 = 1548-1560nm Pass / 1530-1542nm Reflect
X = other
1 = FC/UPC
2 = FC/APC
3 = SC/UPC
4 = SC/APC
N=None
X=other
B = 250um Bare Fiber
L = 900um Loose Tube
X=other
1 = 1.0m
X=other

Single Mode WDM (1x2 1530-1542/1548-1560nm 500mW)
