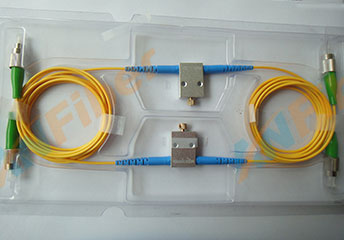

PM VOA 1060/1310/1550nm 300mW

PM VOA 1060/1310/1550nm 300mW

Name: PM VOA 1060/1310/1550nm 300mW

Class: Polarization Maintaining

Type: PM Variable Optical Attenuator

: Test Report

Previous: Twin PM Isolator 1310/1480/1550nm 500mW

Next: PM Tap Isolator 1310/1480/1550/1590 500mW

Specifications of PM VOA:

Parameters	Unit	Values
Operating Wavelength Range	nm	1060	1310	1550
Wavelength Range Tolerance	nm	±30
Max. Excess Loss	dB	0.6
Max. Attenuation Range	dB	30
Max.WDL at 23℃，Minimum Attenuation	dB	0.3
Resolution Below 10dB Attenuation Range	dB	0.1
Max.TDL( Minimum Attenuation)	dB	0.5
Min. Return Loss	dB	50
Min.ER at 23℃，Minimum Attenuation	dB	20
Fiber Type	-	Panda Fiber
Max. Tensile Load	N	5
Max. Optical Power(CW）	mW	300
Operating Temperature	℃	0 to 70
Storage Temperature	℃	-40 to +85 (No Condensing)

Ordering Information of PM VOA:

A	B	C	D
Wavelength	Connector Type	Fiber Jacket	Fiber Length
06 = 1064nm 31 = 1310nm 55 = 1550nm 3155 = 1310/1550nm X = other	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X=other	B = 250um Panda Fiber L = 900um Loose Tube C =3mm cable E =2mm cable	0.8 = 0.8m X:other

1060/1310/1550nm Polarization Maintaining Variable Optical Attenuator (PM VOA)
