Collimator Variable Optical Attenuator

Name: Collimator Variable Optical Attenuator
Class: VOA&MEMS VOA
Type: fiber optical variable attenuator

Specifications:
Parameters 1310 or 1550 1310&1550 850、1300 1053、1060、830、
780、660
Bandwith  (nm) ± 40 ± 40 ± 40 ± 15
Attenuation range (dB) 0.6 ~ 60 0.8 ~ 60 0.8 ~ 60 1.0 ~ 60
Original loss (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0
Return loss (dB) ≥50 ≥30 ≥40
Fiber SM-28e fiber 50/125 or 62.5/125
MM fiber
Special  single
model fiber
Precision (dB) 0.02
PDL (dB) ≤0.10
Operating temperature (℃) -40~ +70
Storage temperature (℃) -40 ~ +85
Dimensions (L×W×H mm) 26×8×18

Ordering Information:
A B C D E F
VOA-C Fiber Type Wavelength Tuble Adjustment type Connector
  S=Single Mode M5=50/125um M6=62.5/125um 131=1310nm
155=1550nm
1315=1310&1550nm
1=900um
2=2mm cable 3=3mm cable
0=Hand adjustment FU=FC/UPC FA=FC/APC
X=other

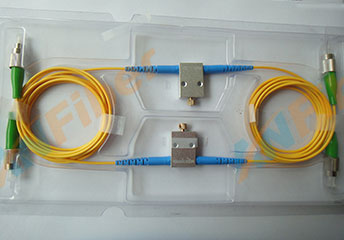

Collimator variable optical attenuator in Singlmeode and Multimode
