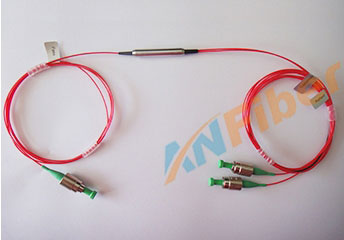

DWDM 100GHz 200GHz 3W

DWDM 100GHz 200GHz 3W

Name: DWDM 100GHz 200GHz 3W

Class: High Power

Type: High Power DWDM

: Test Report

Previous: In-Line Polarizers 1310/1480/1550nm 10W

Next: WDM/Isolator Hybrid 980/1480/1550nm 5W

Specifications of DWDM:

Parameters		Unit	Values
Filter Type			200GHz	100GHz
Pass Band	Center Wavelength CWL	nm	ITU Grid
	Pass Band	nm	±0.25	±0.11
	Max. Insertion Loss at C→P	dB	1.0	1.2
	Typ. Insertion Loss at C→P	dB	0.7	0.9
	Min. Channel Isolation at C→P	dB	25	25
	Typ. Channel Isolationat C→P	dB	30	30
Reflection Band	Max. Insertion Loss at C→R	dB	0.7	0.7
	Typ. Insertion Lossat C→R	dB	0.5	0.5
	Min. Channel Isolation at C→R	dB	12	12
	Typ. Channel Isolationat C→P	dB	14	14
Max. PDL		dB	0.1	0.1
Typ. PDL		dB	0.05	0.05
Min. Directivity		dB	45	45
Min.Return Loss		dB	50	50
Center Wavelength Stability		nm/℃	≤0.002
Thermal Stability		dB/℃	≤0.005
Max. Optical Power (CW)		W	1, 2, 3, or Specify
Max. Peak Power for ns Pulse		kW	10
Max. Tensile Load		N	5
Fiber Type			SMF-28e Fiber
Operating Temperature		℃	-5 to +70
Storage Temperature		℃	-40 to +85

Ordering Information of DWDM:

A	B	C	D	E	F
Channel Spacing	ITU Grid	Handling Power	Connector Type on Port 1, 2 & 3	Fiber Jacket on Port 1, 2 & 3	Fiber Length
1 = 100 GHz 2 = 200 GHz		01 = 1W X = other	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N = None X = other	B = 250um Panda Fiber L = 900um Loose Tube X = other	1 = 1.0m X = other

High Power Dense Wavelength Division Multiplexing (DWDM 100GHz 200GHz)
