C/L Band Filter WDM (1530~1561/1571~1605nm 500mW)

Name: C/L Band Filter WDM (1530~1561/1571~1605nm 500mW)
Class: WDM & CWDM & DWDM & AWG
Type: C/L Band Filter WDM

Specifications:
Parameters Unit Values
Pass Band Wavelength Range nm 1530-1561 (1571-1605)
Max. Insertion Loss dB 0.7
Typ. Insertion Loss dB 0.5
Min. Isolation at 23℃ dB 22
Typ. Isolation dB 25
Reflection Band Wavelength Range nm 1571-1605 (1530-1561)
Max. Insertion Loss dB 0.5
Typ. Insertion Loss dB 0.3
Min. Isolation at 23℃ dB 12
Typ. Isolation dB 15
Optical Return Loss dB 50
Typ. PDL dB 0.05
Max. PDL dB 0.1
Thermal Stability dB/℃ ≤0.005
Max. Optical Power (CW) mW 500
Max. Tensile Load N 5
Fiber Type   SMF-28e Fiber
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85

Ordering Information:
A B C D
Wavelength Connector Type on Port 1, 2 & 3 Fiber Jacket on Port 1, 2 & 3 Fiber Length
6171 = 1530-1561nm Pass / 1571-1605nm Reflect
7161 = 1571-1605nm Pass / 1530-1561nm Reflect
X = other
1 = FC/UPC
2 = FC/APC
3 = SC/UPC
4 = SC/APC
N=None
X=other
B = 250um Bare Fiber
L = 900um Loose Tube
X=other
1 = 1.0m
X=other

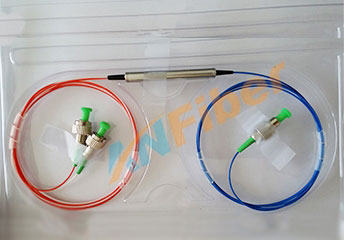

C/L Band Filter WDM
