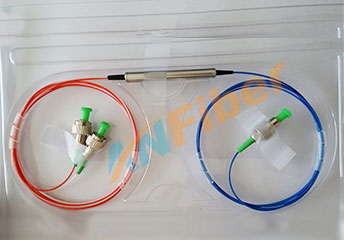

Mini WDM/Isolator Hybrid Combination (980/1480/1550nm 300mW)

Name: Mini WDM/Isolator Hybrid Combination (980/1480/1550nm 300mW)
Class: Hybrid Device
Type: WDM/Isolator Hybrid Combination

Specifications:
Parameters Unit Values
Stage     Single Stage Dual Stage
Pass Band Signal Wavelength Range nm 1530~1565
Max. insertion Loss@P→C or @C→P dB 0.9 1.0
Typ. insertion Loss@P→C or C→P dB 0.7 0.8
Typ. Peak Signal Isolation, at 23℃ dB 40 52
Min. Signal Isolation, at 23℃ dB 28 45
Max. Polarization Dependent Loss dB 0.1 0.15
Max. Polarization Mode Dispersion (PMD) ps 0.25 0.1
Reflect Band Wavelength Range nm 960~990 or 1460-1490
Max. insertion Loss@R→C dB 0.5
Typ. insertion Loss@R→C dB 0.3
Min. Return Loss dB 50
Max. IL Thermal Stability dB/℃ 0.005
Max. Optical Power CW mW 300
Max. Tensile Load N 5
Fiber Type   Corning SMF-28e on Common & Pass ports, HI 1060(for 980nm Pump) or SMF-28e fiber(for 1480nm Pump) on Reflect port
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85

Ordering Information:
A B C D E F G
Pump Wavelength Pump Type  Stage PMD Connector Type Fiber Jacket Fiber Length
98 = 980nm
48 = 1480nm
F = Forward Pump
B = Backward Pump
S = Single Stage
D = Dual Stage
R = Refer to Above Spec.
X = other
1 = FC/UPC
2 = FC/APC
3 = SC/UPC
4 = SC/APC
N = None
X = other
B = 250um bare Fiber
L = 900um Loose Tube
X = other
1 = 1.0m
X = other
