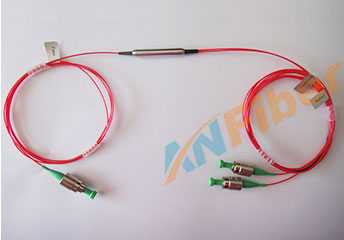

Filter WDM 980/1310/1480/1550nm 3W

Filter WDM 980/1310/1480/1550nm 3W

Name: Filter WDM 980/1310/1480/1550nm 3W

Class: High Power

Type: High Power Filter WDM

: Test Report

Previous: Optical Isolator 980nm 3W

Next: In-Line Polarizers 1310/1480/1550nm 10W

Specifications of Filter WDM:

Parameters		Unit	Values
Pass Band	Wavelength Range	nm	1270-1350	1450-1490	1500-1520	950-1010
			(1530-1600)	(1530-1580)	(1530-1570)	(1500-1600)
	Typ.Insertion Loss	dB	0.6	0.6	0.7	0.7
	Max.Insertion Loss	dB	0.8	0.8	0.9	0.9
	Typ. Isolation	dB	35	30	35	35
	Min. Isolation at 23℃	dB	30	25	30	30
Reflection Band	Wavelength Range	nm	1530-1600	1530-1580	1530-1570	1500-1600
			(1270-1350)	(1450-1490)	(1500-1520)	(950-1010)
	Typ. Insertion Loss	dB	0.5
	Max. Insertion Loss	dB	0.7
	Typ. Isolation	dB	15
	Min. Isolation at 23℃	dB	12
Min. Optical Return Loss		dB	50
Max. PDL		dB	0.1
Typ. PDL		dB	0.05
Thermal Stability		dB/℃	≤0.005
Max. Optical Power (CW)		W	1, 2, 3 or Specify
Max. Peak Power for ns Pulse		kW	10
Max. Tensile Load		N	5
Fiber Type			SMF-28e Fiber for all ports		SMF-28e Fiber for pass port;HI 1060 Fiber for common and reflect ports.
Operating Temperature		℃	-5 to +70
Storage Temperature		℃	-40 to +85

Ordering Information of Filter WDM:

A	B	C	D	E
Wavelength	Handling Power	Connector Type on Port 1, 2 & 3	Fiber Type on Port 1, 2 & 3	Fiber Length
3155 = 1310nm Pass / 1550nm Reflect 5531 = 1550nm Pass / 1310nm Reflect 4855 = 1480nm Pass / 1550nm Reflect 5548 = 1550nm Pass / 1480nm Reflect 5155 = 1510nm Pass / 1550nm Reflect 5551 = 1550nm Pass / 1510nm Reflect 5598 = 1550nm Pass / 980nm Reflect	01 = 1W X = other	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X = other	B = 250um Panda Fiber L = 900um Loose Tube X = other	1 = 1.0m X = other

Filter WDM 980/1310/1480/1550nm
