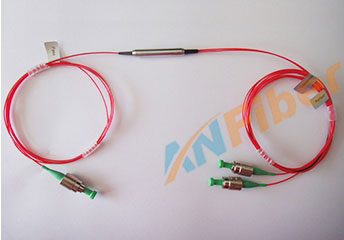

WDM/Isolator Hybrid 980/1480/1550nm 5W

WDM/Isolator Hybrid 980/1480/1550nm 5W

Name: WDM/Isolator Hybrid 980/1480/1550nm 5W

Class: High Power

Type: High Power WDM/Isolator Hybrid

: Test Report

Previous: DWDM 100GHz 200GHz 3W

Next: Isolator Core 1310/1480/1550/1620nm 10W

Specifications:

Parameters		Unit	Values
Stage			Single Stage	Dual Stage
Pass Band	Signal Wavelength Range	nm	1530~1565
	Max. Insertion Loss	dB	0.9	1.0
	Typ. Insertion Loss	dB	0.7	0.8
	Typ. Peak Signal Isolation	dB	40	55
	Min. Signal Isolation at 23℃	dB	28	45
	Max. PDL	dB	0.1	0.15
	Max. PMD	ps	0.25	0.1
Reflect Band	Wavelength Range	nm	960~990 or 1460-1490
	Max. Insertion Loss@R→C	dB	0.7 (for 1480nm pump); 0.8 (for 980nm pump)
	Typ. Insertion Loss@R→C	dB	0.5 (for 1480nm pump); 0.6 (for 980nm pump)
	Max. PDL	dB	0.1
Min. Return Loss		dB	50
Max. Optical Power (CW)		W	1, 3, 5 or Specify
Max. Peak Power for ns Pulse		kW	10
Max. Tensile Load		N	5
Fiber Type			SMF-28e fiber on Common & Pass ports, HI 1060(for 980nm Pump) or SMF-28e fiber(for 1480nm Pump) on Reflect port.
Operating Temperature		℃	-5 to +70
Storage Temperature		℃	-40 to +85

Ordering Information:

A	B	C	D	E	F	G	H
Signal & Pump Wavelength	Pump Type	Stage	PMD	Handling Power	Connector Type	Fiber Jacket	Fiber Length
5598 = 1550nm signal/980nm pump 5548 = 1550nm Signal/1480nm pump	F = Forward Pump B = Backward Pump	S = Single Stage D = Dual Stage	1 = 0.1ps max. 2 = Refer to above Spec.	01 = 1W 03 = 3W 05 = 5W X = other	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X=other	B = 250um Panda Fiber L = 900um Loose Tube X=other	0.8 = 0.8m X=other

High Power WDM/Isolator Hybrid 980/1480/1550nm
